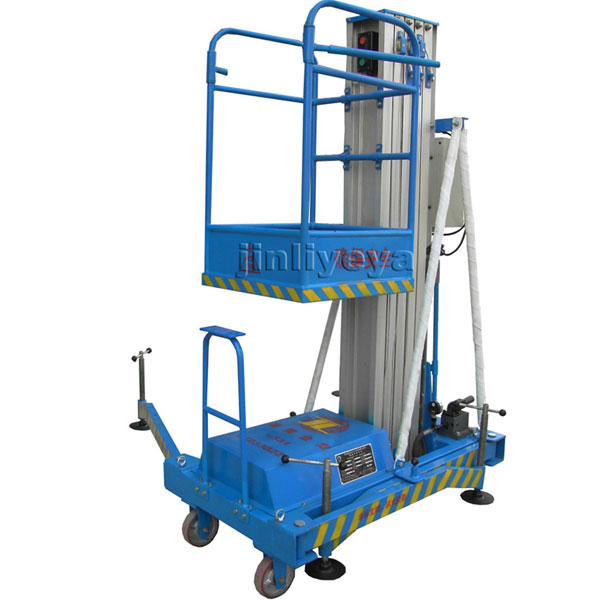

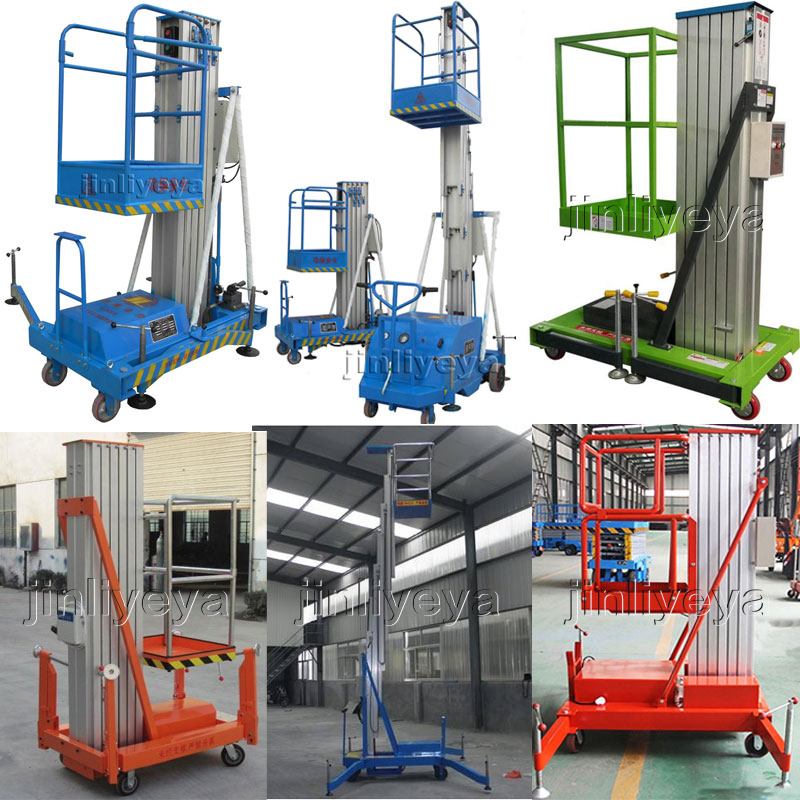

*Adopting hydraulic and chain intermodal transportation. *The synchronous lifting and lowering of two sets of masts and columns support the working platform, which has working stability. *Beautiful appearance, small size, light weight, flexible and convenient movement, safe and reliable lifting and lowering operations. *Foldable guardrail, when idle, the guardrail can be folded down to reduce its own height, saving space, and easy to install during operation. *The lifting operation is equipped with two sets of buttons, which can be controlled both on the workbench and under the workbench. *The frame is formed by welding rectangular tubes. *The lifting column is made of high-strength aluminum alloy profiles, with a compact structure and double chain traction, providing a high safety factor. *The platform has a limited limit when it rises to a high position. Note: Can be designed and manufactured according to user requirements Applicable locations: Aluminum alloy aerial work platforms are suitable for repairing, maintaining, and cleaning shopping malls, hotels, restaurants, indoor decoration, layout, space lighting lines, pipelines, doors and windows, and are also suitable for working in spaces with narrow areas or spaces. Aluminum alloy aerial work platforms are suitable for repairing, maintaining, and cleaning shopping malls, hotels, restaurants, indoor decoration, layout, space lighting lines, pipelines, doors and windows, and are also suitable for working in spaces with narrow areas or spaces. 1、 Operation usage 1. Before starting work, open the support arm to 135 ° (see figure), rotate the leg screw cylinder, adjust the base to horizontal, fasten the safety rope, check whether the travel switch is firm and sensitive, and whether the upper control button is normal. Then, you can operate the platform to lift and lower. When lifting to the working height, the staff must wear a safety belt and lock it on their body and a sturdy object. 2. Lifting operation: It is divided into up and down control lifting and flashlight dual-use. Operate according to the marked symbols. Before use, check whether the manual pressure valve is closed. When there is a sudden power outage during operation, the manual pressure pump valve can be released, and the elevator slowly descends to the position. 3. During elevator operation, the diameter of the power cord should not be less than 4 square millimeters and the length should not exceed 20 meters. 4. Do not drop items into the slide during homework. 5. Overloading operations are not allowed. 6. The elevator is not allowed to move the entire machine until it has been lowered to its designated position. 7. Outdoor work is prohibited in rainy weather. 2、 Attention: 1. When disassembling and assembling the elevator, the body should be vertical to prevent deformation and oil leakage of the main body. 2. Staff should pay attention to the tools and components they carry with them and avoid falling into the support frame to prevent the chain from getting stuck. 3. Before using the machine, first empty it once and carefully observe whether there are any abnormal sounds in various parts. Once discovered, it should be stopped from use; After being debugged by maintenance personnel, it can be used (with a three-month warranty for electrical components). 3、 Daily maintenance and upkeep: This machine is an indoor unit and should be used on a hard ground to avoid overturning when used outdoors. The chain screws and safety rope screws should be adjusted every 20 uses, and the electrical and hydraulic systems should be repaired by personnel. Our factory is spacious and bright, with excellent production equipment and imported production line equipment, Our leading products include over ten series, including high-altitude work platforms, hydraulic lifts, lifting platforms, boarding bridges, electric flatbed trucks, hedge trimmers, railway bridges, and car lifts. Jinli adopts a flexible production system to meet customers' special requirements for the design and production of lifting platforms. In the design and production departments of Jinli, we are able to quickly provide solutions for a series of special requirements raised by customers. Our products have been successfully applied in many industries such as aerospace, aviation, nuclear power, logistics, pharmaceuticals, railways, chemicals, and automobiles.
